CF Flange Pneumatically vacuum valves with Bellows
Available in almost all flange types, bellows sealed angle valves offer protection to the actuator from process gases in the foreline where typically used.
- Overview
- Related Products

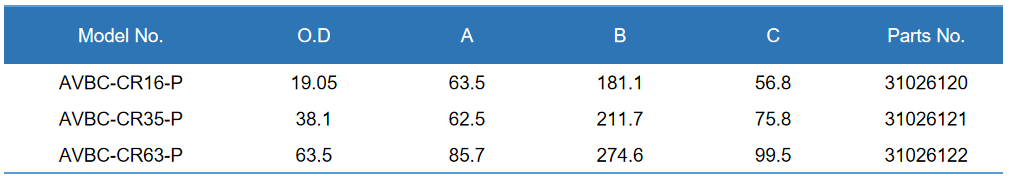

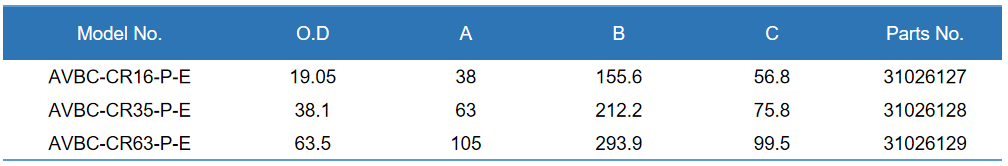

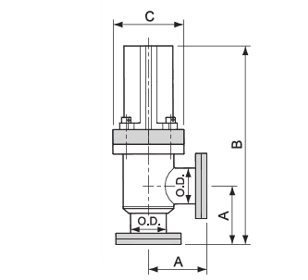

- CF Flange - Pneumatically Actuated with Bellows（cylindrical air cylinder）
- Stainless steel body surface treatment
- below 4”puff polishing
- 3/4~2 inch(19.05~50.8mm) port ODs.
- 4~6.5 kg/cm2 operating air pressure.
- Viton Seal Bonnet : 10-9 mbar vacuum rating
- Bakeable to 150℃
- Welded bellows (316/AM350 optional)

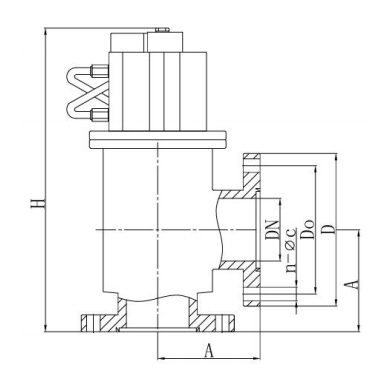

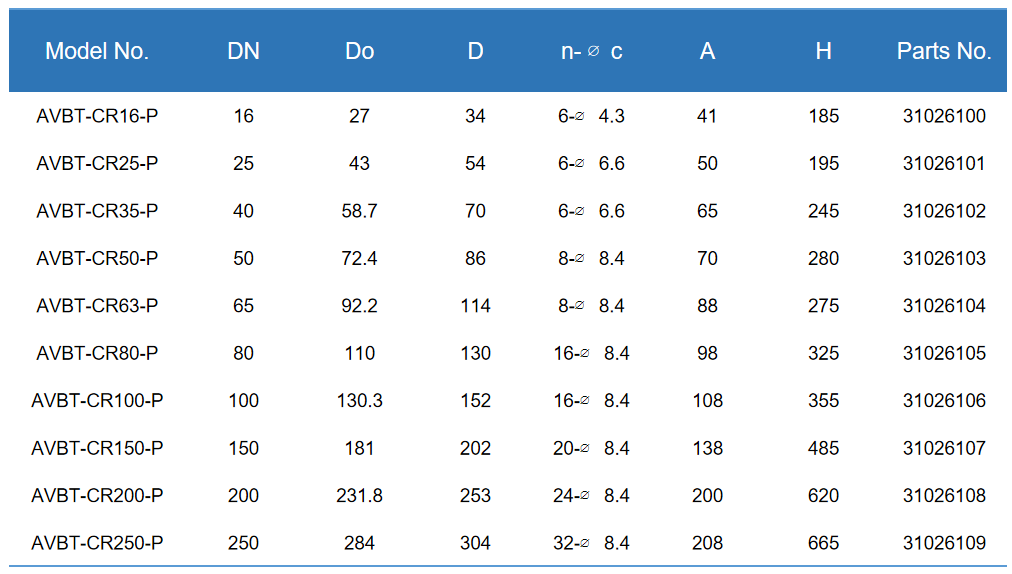

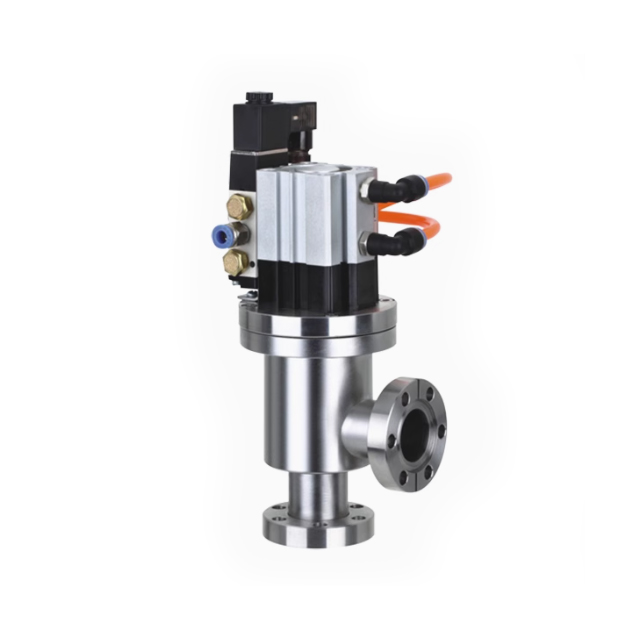

- CF Flange - Pneumatically Actuated with Bellows（square air cylinder ）
- Stainless steel body surface treatment
- Applicable range (pa): 105~1.3×10-6 Pa.
- Valve leakage rate (Pa·L/S) ≤1.3×10-6 Pa·L/s
- Medium temperature:-30~+150℃(Viton)
- Hydraulic Bellow 0.4~0.6MPa operating air pressure.
- Power supply/voltage: AC220V/50Hz, AC110V; DC24V etc.
- For additional signal sensors or other requirements, please contact our sales manager.
