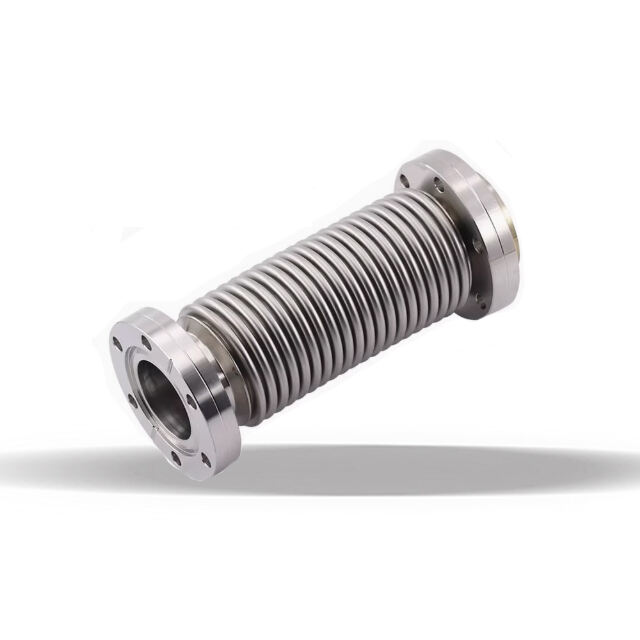

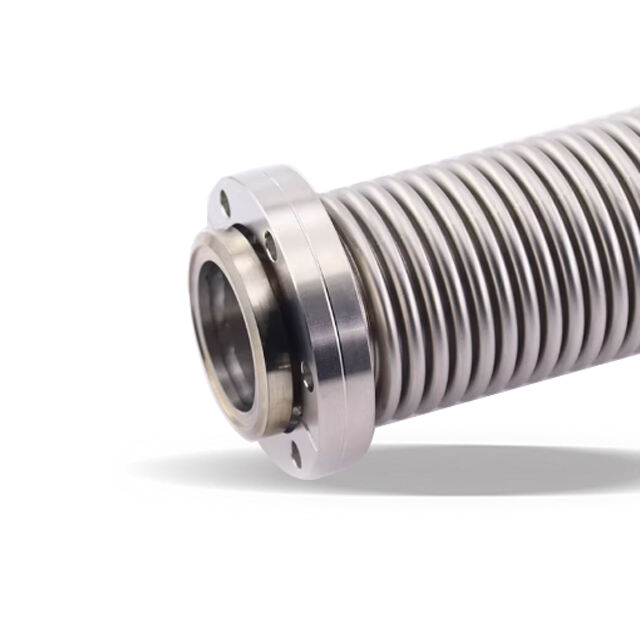

CF Stainless Steel Vacuum Flexible bellow
A variety of hydraulically (hydro) formed and edge-welded bellows for use with CF, KF , ISO, and ASA flanged systems.
- Overview
- Related Products
- CF Flexible Hoses

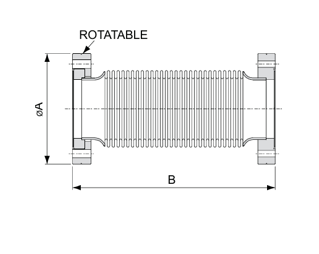

| Model No. | Dimensions | Parts No. | |
| A | B | ||
| CF16FX250R | 33.8 | 250 | 31025000 |
| CF16FX500R | 33.8 | 500 | 31025001 |
| CF16FX750R | 33.8 | 750 | 31025002 |
| CF16FX1000R | 33.8 | 1000 | 31025003 |
| CF35FX250R | 69.5 | 250 | 31025004 |
| CF35FX500R | 69.5 | 500 | 31025005 |
| CF35FX750R | 69.5 | 750 | 31025006 |
| CF35FX1000R | 69.5 | 1000 | 31025007 |
| CF63FX250R | 113.6 | 250 | 31025008 |
| CF63FX500R | 113.6 | 500 | 31025009 |
| CF63FX750R | 113.6 | 750 | 31025010 |
| CF63FX1000R | 113.6 | 1000 | 31025011 |
| CF100FX250R | 151.6 | 250 | 31025012 |
| CF100FX500R | 151.6 | 500 | 31025013 |
| CF100FX750R | 151.6 | 750 | 31025014 |
| CF100FX1000R | 151.6 | 1000 | 31025015 |
For more specifications, please contact our staff or send us an email.
