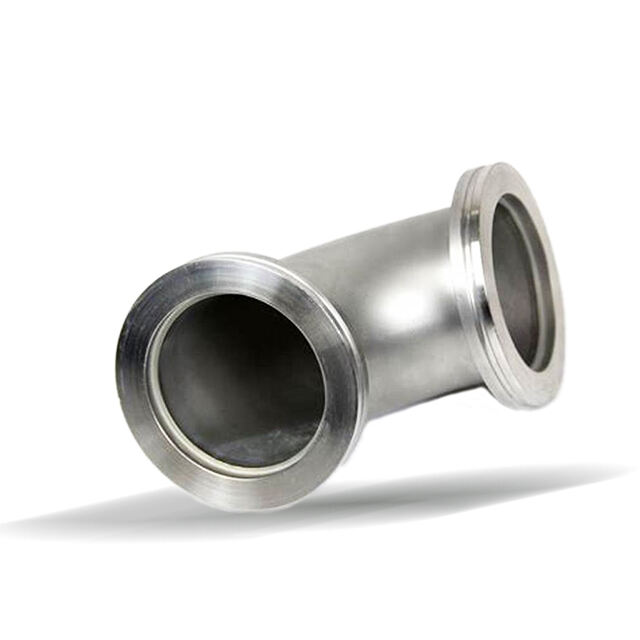

ISO Bend Elbow 90°

ISO-K High Vacuum Clamp Style 90° Radius Elbows.

  • Overview
  • Related Products

We design and manufacture fully customizable vacuum chambers to match your exact process requirements, with flexible configurations covering a wide range of industrial and lab scenarios:

Material: 304 stainless steel, 316L stainless steel, or customer-specified materials

Operating temperature range: -190°C to +1500°C (water cooling configuration available for high-temperature working conditions)

Sealing method: Fluororubber "O"-ring for general vacuum use, or metal oxygen-free copper gasket for ultra-high vacuum and extreme temperature environments

Quality is verified at every step before delivery, with mandatory factory inspections on every unit:

🔹Vacuum leak rate test

🔹Customizable surface treatments:

Wire drawing and polishing, sandblasting and electrolytic treatment, acid pickling, electrolytic polishing, mirror polishing, and more to fit your application standards

Whether you need a chamber for PVD coating, semiconductor processing, thermal treatment, food freeze-drying, or lab research, we can tailor the design to your footprint, interface, and performance needs.

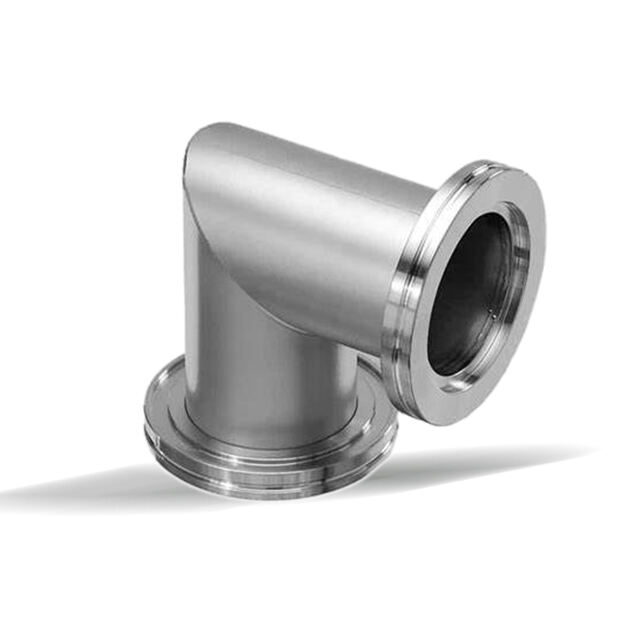

ISO Elbows 90°

  • ISO Elbows Feature:
    304/316L stainless steel construction
    Radius or miter design
    Common lengths and tube diameters listed; contact us with your specific requirements
  • iso bend elbow 90-1iso bend elbow 90-2
Model No. Dimension Parts No
A B C
ISO63EL90A 138.4 63.5 95 31031090
ISO80EL90A 166.9 76.2 110 31031091
ISO100EL90A 217.7 101.6 130 31031092
ISO160EL90A 235.2 152.4 180 31031093
