CF Conical Adapter CF Reducing Adaptor
Straight reducer nipples adapt two different flange sizes where the large flange is fixed and the small flange is rotatable. The connecting tube is sized for the small flange.
- Overview
- Related Products

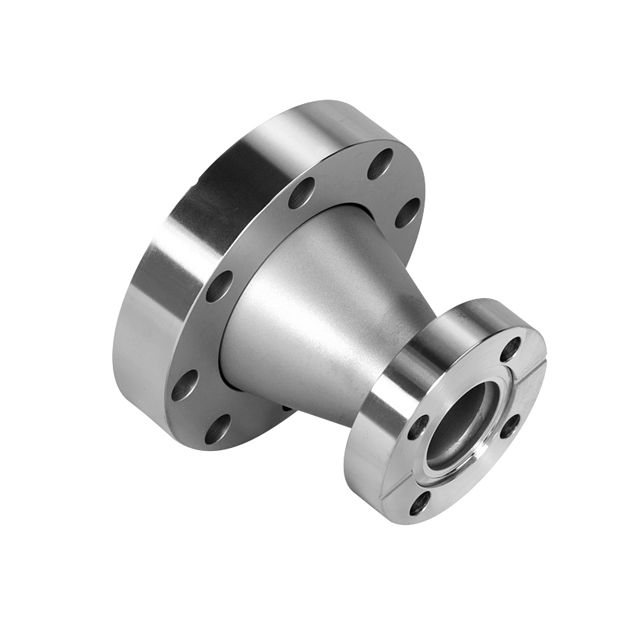

CF-CF Conical Reducer Adaptor (Fix）
| Model No. | Parts No. | Dimensions | |||
| A | B | C | D | ||
| CF35RA16 | 31023000 | 69.5 | 33.8 | 76.2 | 19.05 |
| CF63RA16 | 31023001 | 113.6 | 33.8 | 76.2 | 19.05 |
| CF63RA35 | 31023002 | 113.6 | 69.5 | 76.2 | 38.1 |
| CF100RA35 | 31023003 | 151.6 | 69.5 | 76.2 | 38.1 |
| CF100RA63 | 31023004 | 151.6 | 113.6 | 76.2 | 63.5 |
| CF150RA35 | 31023005 | 202.5 | 69.5 | 76.2 | 38.1 |
| CF150RA63 | 31023006 | 202.5 | 113.6 | 76.2 | 63.5 |
| CF150RA100 | 31023007 | 202.5 | 151.6 | 76.2 | 101.6 |

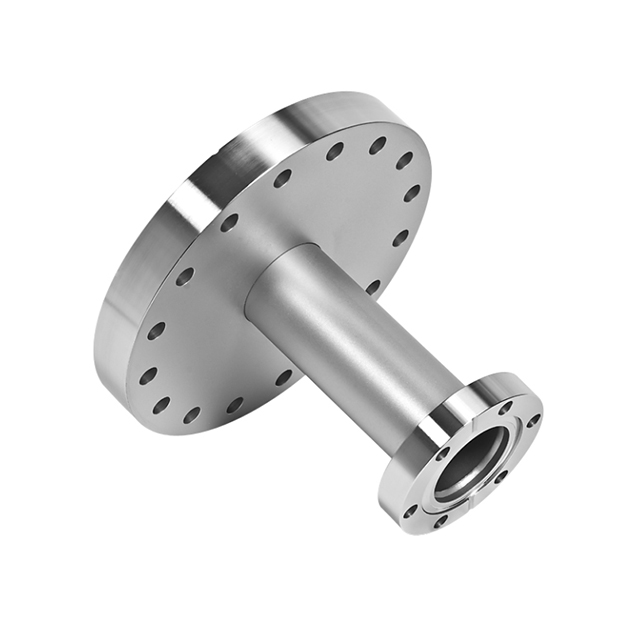

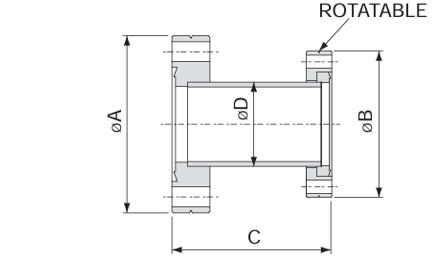

CF Reducing Adaptor-Small Flange （Rotatable）
| Model No. | Parts No. | Dimensions | |||
| A | B | C | D | ||
| CF35RA16R | 31023010 | 69.5 | 33.8 | 76.2 | 19.05 |
| CF63RA16R | 31023011 | 113.6 | 33.8 | 76.2 | 19.05 |
| CF63RA35R | 31023012 | 113.6 | 69.5 | 76.2 | 38.1 |
| CF100RA35R | 31023013 | 151.6 | 69.5 | 76.2 | 38.1 |
| CF100RA63R | 31023014 | 151.6 | 113.6 | 76.2 | 63.5 |
| CF150RA35R | 31023015 | 202.5 | 69.5 | 76.2 | 38.1 |
| CF150RA63R | 31023016 | 202.5 | 113.6 | 76.2 | 63.5 |
| CF150RA100R | 31023017 | 202.5 | 151.6 | 76.2 | 101.6 |
