CF Flange Manually Operated With Bellows

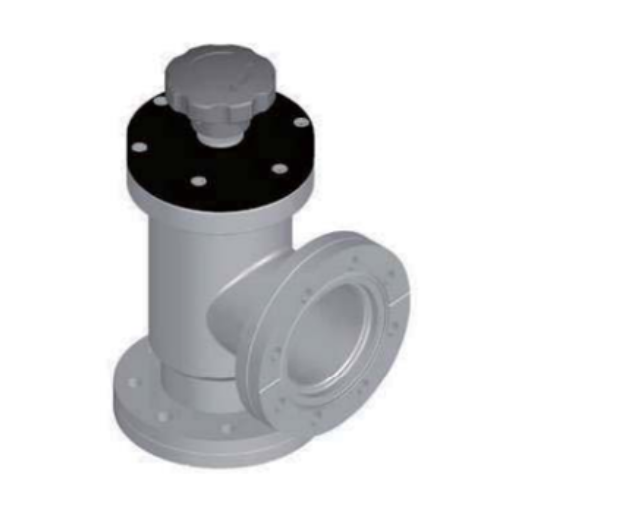

Available in almost all flange types, bellows sealed angle valves offer protection to the actuator from process gases in the foreline where typically used.
- Overview
- Related Products
- Stainless steel body surface treatment : below 4”puff polishing
- 3/4~3 inch(19.05~76.2mm) port ODs.
- Viton Seal Bonnet : 10-9 mbar vacuum rating
- CF flange Bakeable to 150℃
- Welded bellows (316/AM350 optional)
CF Flange - Manually Operated With Bellows
Features:

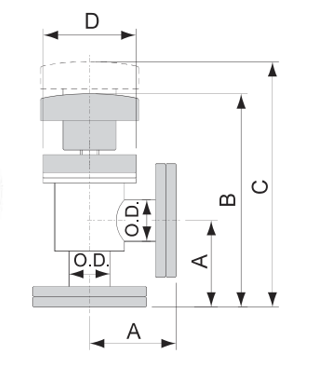

| Model No. | O.D | A | B | C | D | Parts No. |
| AVB-CR16-M | 19.05 | 63.5 | 145.4 | 164.9 | 56.8 | 31026000 |
| AVB-CR35-M | 38.1 | 62.5 | 165 | 197.5 | 75.8 | 31026001 |
| AVB-CR63-M | 63.5 | 85.7 | 222.2 | 264.6 | 99.5 | 31026002 |
| Model No. | O.D | A | B | C | D | Parts No. |
| AVB-CR16-M-E | 19.05 | 38 | 119.9 | 139.5 | 56.8 | 31026020 |
| AVB-CR35-M-E | 38.1 | 63 | 165.5 | 198 | 75.8 | 31026021 |
| AVB-CR63-M-E | 63.5 | 105 | 241.5 | 283.9 | 99.5 | 31026022 |
