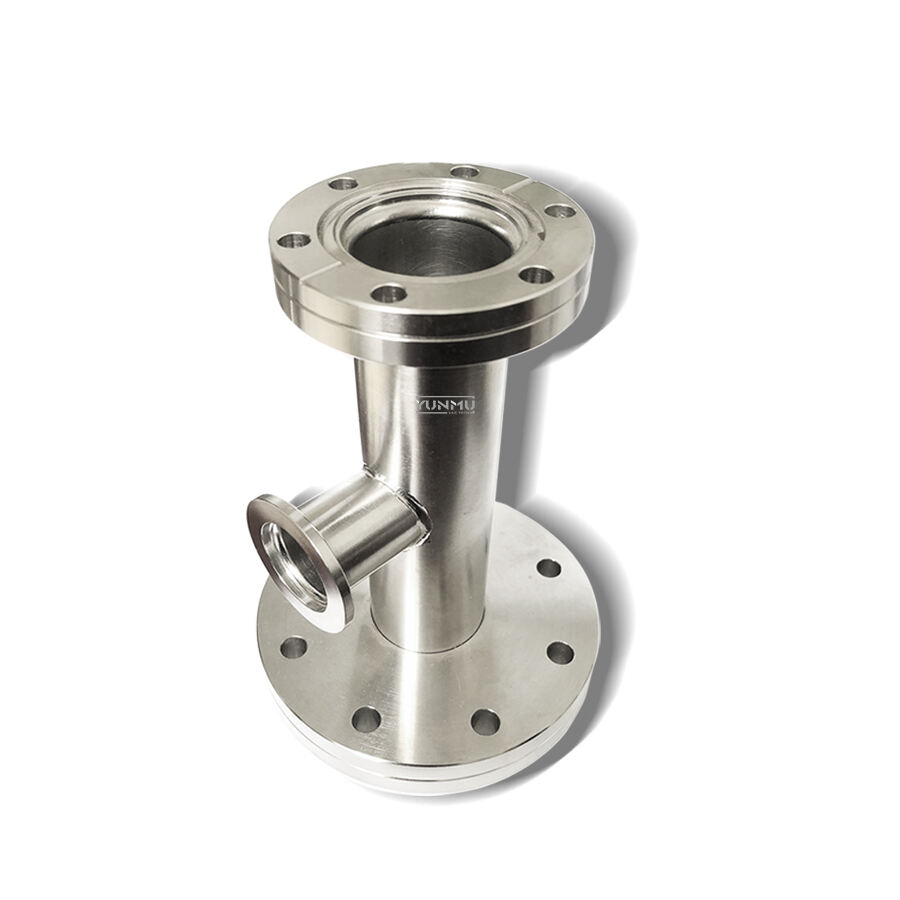

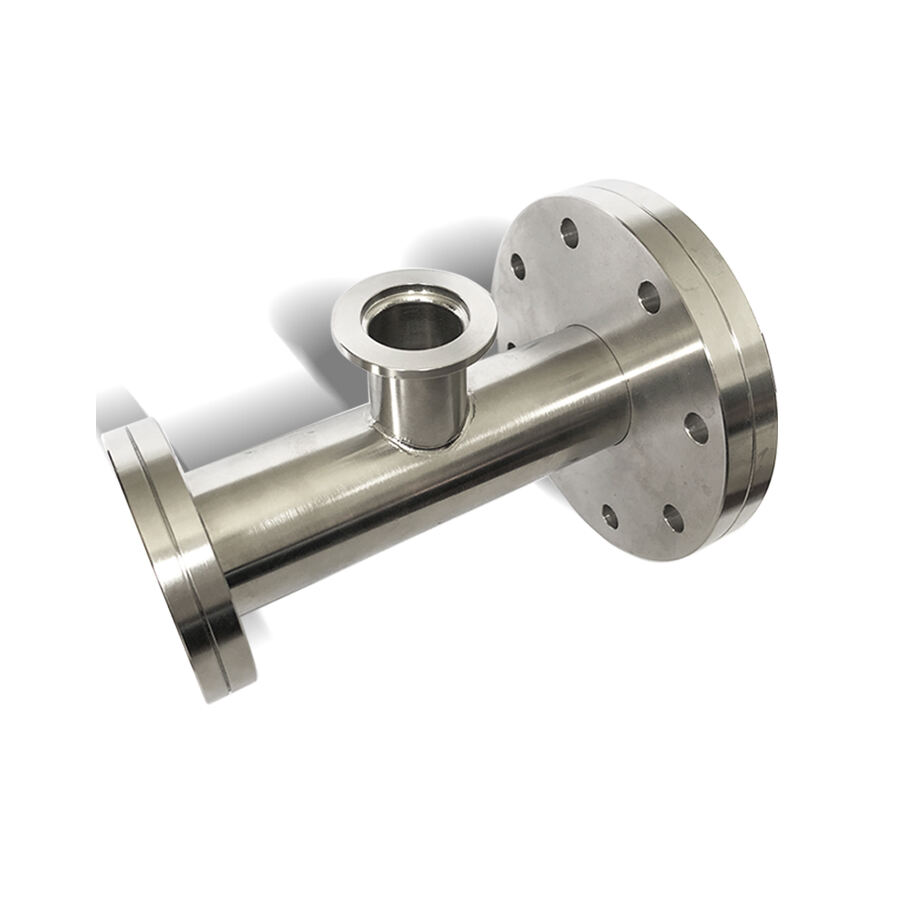

CF Unequal Tee

  • Overview
  • Related Products

We design and manufacture fully customizable vacuum chambers to match your exact process requirements, with flexible configurations covering a wide range of industrial and lab scenarios:

Material: 304 stainless steel, 316L stainless steel, or customer-specified materials

Operating temperature range: -190°C to +1500°C (water cooling configuration available for high-temperature working conditions)

Sealing method: Fluororubber "O"-ring for general vacuum use, or metal oxygen-free copper gasket for ultra-high vacuum and extreme temperature environments

Quality is verified at every step before delivery, with mandatory factory inspections on every unit:

🔹Vacuum leak rate test

🔹Customizable surface treatments:

Wire drawing and polishing, sandblasting and electrolytic treatment, acid pickling, electrolytic polishing, mirror polishing, and more to fit your application standards

Whether you need a chamber for PVD coating, semiconductor processing, thermal treatment, food freeze-drying, or lab research, we can tailor the design to your footprint, interface, and performance needs.

CF Tee- Fixed

CF Unequal Tee supplierCF Unequal Tee factory

Model No. Parts No. Dimensions
A B C D
CF16T 31022040 37.50 19.05 33.80 75.00
CF35T 31022041 62.50 38.10 69.50 125.00
CF63T 31022042 85.70 63.50 113.60 171.40
CF100T 31022043 109.50 101.60 151.60 219.00
CF150T 31022044 139.70 152.40 202.50 279.40

CF Tee- Two Flange Rotatable

CF Unequal Tee factoryCF Unequal Tee details

Model No. Parts No. Dimensions
A B C D
CR16T 31022047 47.20 19.05 33.80 94.40
CR35T 31022048 62.50 38.10 69.50 125.00
CR63T 31022049 85.70 63.50 113.60 171.40
CR100T 31022050 109.50 101.60 151.60 219.00
CR150T 31022051 139.70 152.40 202.50 279.40
