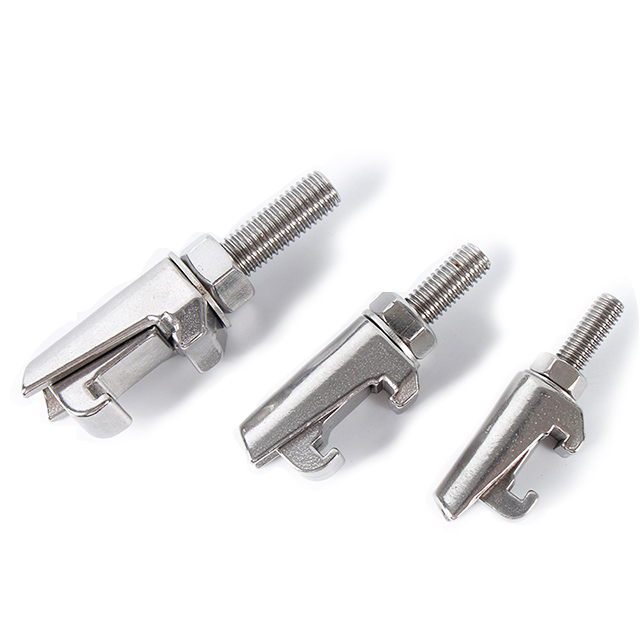

ISO-K Double Claws--SS304
These single and double clamps are used (in conjunction with a centering ring with fitted o-ring) for mating ISO flanges.
- Overview
- Related Products
- Single clamp used for mating ISO-F and ISO-K style flanges together
- Double clamp used for mating ISO-K flanges only
- Available in aluminum or cold steel (double clamps only)
- ISO Double Claw Clamp
We design and manufacture fully customizable vacuum chambers to match your exact process requirements, with flexible configurations covering a wide range of industrial and lab scenarios:
Material: 304 stainless steel, 316L stainless steel, or customer-specified materials
Operating temperature range: -190°C to +1500°C (water cooling configuration available for high-temperature working conditions)
Sealing method: Fluororubber "O"-ring for general vacuum use, or metal oxygen-free copper gasket for ultra-high vacuum and extreme temperature environments
Quality is verified at every step before delivery, with mandatory factory inspections on every unit:
🔹Vacuum leak rate test
🔹Customizable surface treatments:
Wire drawing and polishing, sandblasting and electrolytic treatment, acid pickling, electrolytic polishing, mirror polishing, and more to fit your application standards
Whether you need a chamber for PVD coating, semiconductor processing, thermal treatment, food freeze-drying, or lab research, we can tailor the design to your footprint, interface, and performance needs.
ISO Clamps Feature:
| Model No. | Material | Dimension | Parts No | |
| A | Bolt Size | |||
| ISO63-100DWCS | SS304 | 60.2 | M8 | 31034004 |
| ISO160-250DSWCS | SS304 | 65.61 | M10 | 31034005 |
| ISO320-500DSWCS | SS304 | 85.7 | M12 | 31034006 |
