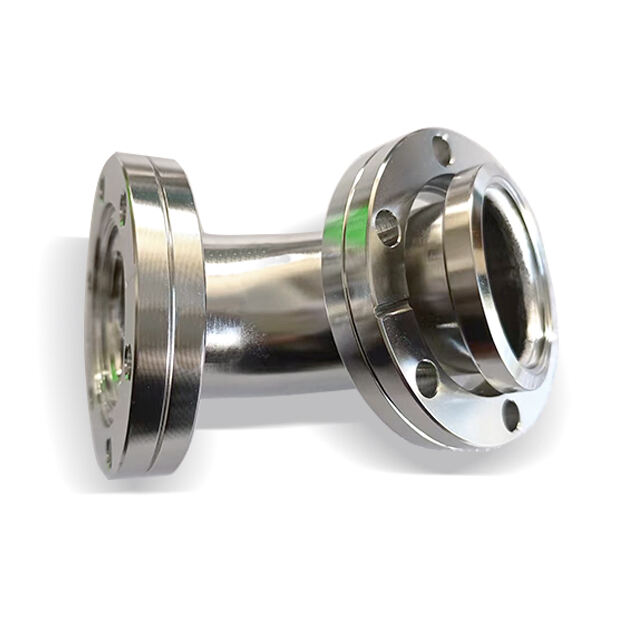

CF Bend Elbow 90°

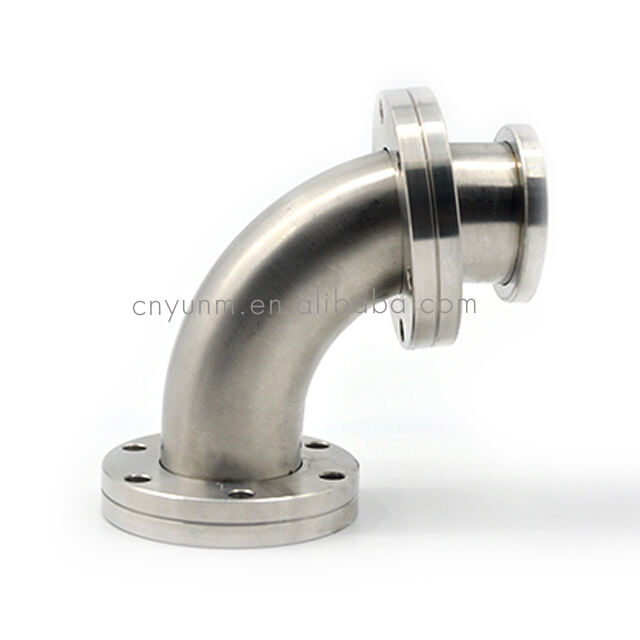

Radius 90° elbows with two rotatable flanges to accommodate a wide variety of system configurations.
- Overview
- Related Products

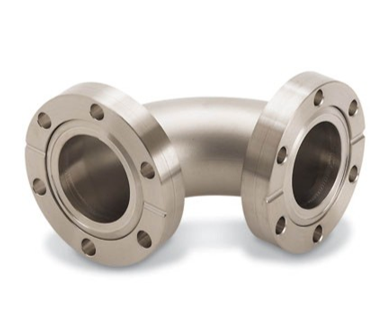

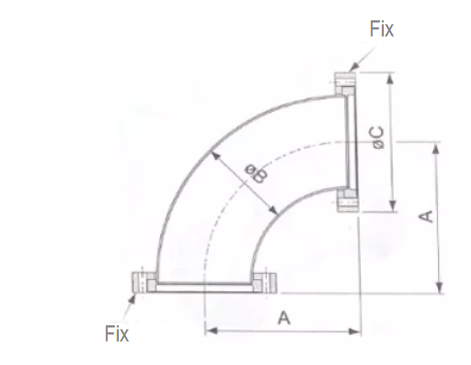

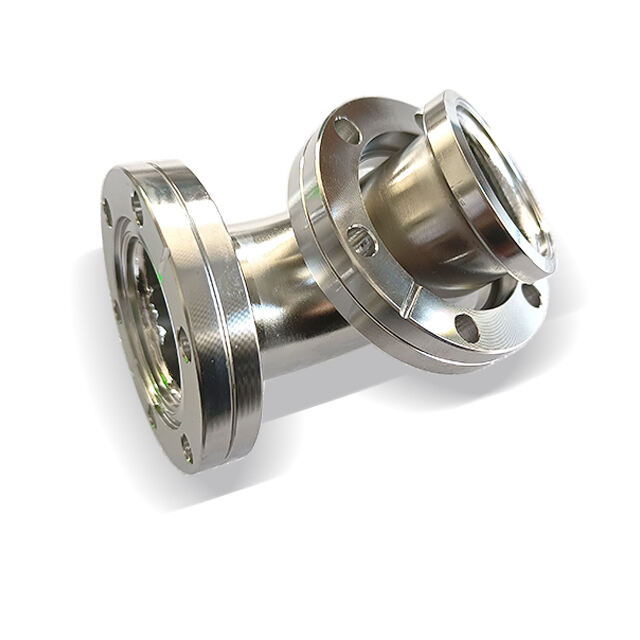

- CF Elbow 90°- Fixed

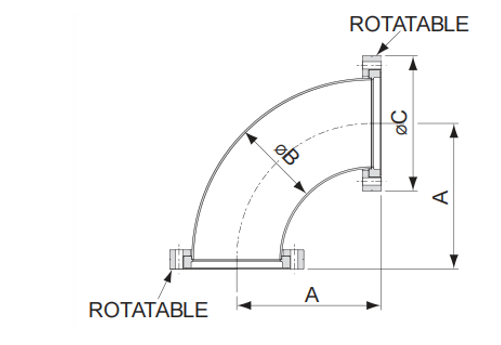

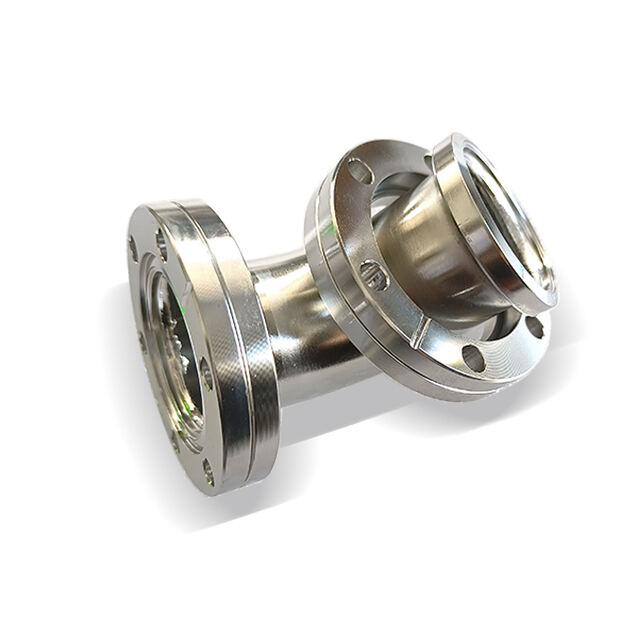

- CF Elbow 90°- Rotatable
| Model No. | Dimensions | Parts No. | ||
| A | B | C | ||
| CF16EL90 | 37.5 | 19.05 | 33.8 | 31022020 |
| CF35EL90 | 79.9 | 38.1 | 69.5 | 31022021 |
| CF63EL90 | 141.3 | 63.5 | 113.6 | 31022022 |
| CF100EL90 | 222.2 | 101.6 | 151.6 | 31022023 |
| CF150EL90 | 241.3 | 152.4 | 202.5 | 31022024 |
| CF200EL90 | 215.9 | 219.08 | 253.2 | 31022025 |
| CF250EL90 | 266.7 | 273.05 | 336.5 | 31022026 |
| Model No. | Dimensions | Parts No. | ||
| A | B | C | ||
| CR16EL90 | 47.2 | 19.05 | 33.8 | 31022200 |
| CR35EL90 | 79.9 | 38.1 | 69.5 | 31022201 |
| CR63EL90 | 141.3 | 63.5 | 113.6 | 31022202 |
| CR100EL90 | 222.2 | 101.6 | 151.6 | 31022203 |
| CR150EL90 | 241.3 | 152.4 | 202.5 | 31022204 |
| CR200EL90 | 215.9 | 219.08 | 253.2 | 31022205 |
| CR250EL90 | 266.7 | 273.05 | 336.5 | 31022206 |
