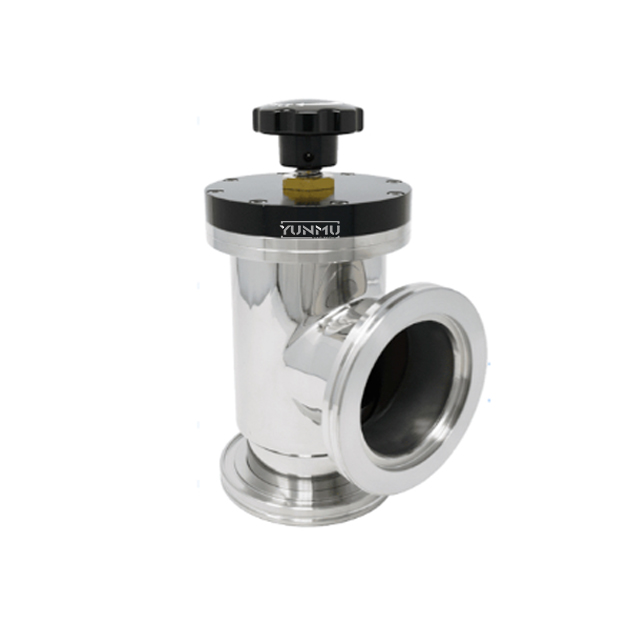

ISO Flange - Manually Operated With Bellows
Available in almost all flange types, bellows sealed angle valves offer protection to the actuator from process gases in the foreline where typically used.
- Overview
- Related Products
- ISO Flange - Manually Operated With Bellows
- Stainless steel body surface treatment : below 4”puff polishing
- 2.5~3 inch(63.5~76.2mm) port ODs.
- Viton Seal Bonnet : 10-9 mbar vacuum rating ISO flange
- Bakeable to 150℃
- Welded bellows (316/AM350 optional)
Features:
| Model No. | O.D | A | B | C | D | Parts No. |
| AVB-ISO63-M | 63.5 | 82.8 | 219.3 | 261.7 | 99.5 | 31036000 |
| AVB-ISO80-M | 76.2 | 89.1 | 227.4 | 275 | 114 | 31036001 |
| AVB-ISO100-M | 101.6 | 113.5 | 340.3 | 404.3 | 151.6 | 31036002 |
| AVB-ISO160-M | 152.4 | 159 | 437.5 | 512.5 | 240 | 31036003 |
| AVB-ISO200-M | 203.2 | 209.5 | 543.6 | 673.6 | 250 | 31036004 |
| AVB-ISO250-M | 254 | 260.6 | 672.7 | 802.7 | 325 | 31036005 |
| Model No. | O.D | A | B | C | D | Parts No. |
| AVB-ISO63-M-E | 63.5 | 88 | 224.5 | 266.9 | 99.5 | 31036020 |
| AVB-ISO80-M-E | 76.2 | 98 | 236.3 | 283.9 | 114 | 31036021 |
