We design and manufacture fully customizable vacuum chambers to match your exact process requirements, with flexible configurations covering a wide range of industrial and lab scenarios:
Material: 304 stainless steel, 316L stainless steel, or customer-specified materials
Operating temperature range: -190°C to +1500°C (water cooling configuration available for high-temperature working conditions)
Sealing method: Fluororubber "O"-ring for general vacuum use, or metal oxygen-free copper gasket for ultra-high vacuum and extreme temperature environments
Quality is verified at every step before delivery, with mandatory factory inspections on every unit:
🔹Vacuum leak rate test
🔹Customizable surface treatments:
Wire drawing and polishing, sandblasting and electrolytic treatment, acid pickling, electrolytic polishing, mirror polishing, and more to fit your application standards
Whether you need a chamber for PVD coating, semiconductor processing, thermal treatment, food freeze-drying, or lab research, we can tailor the design to your footprint, interface, and performance needs.

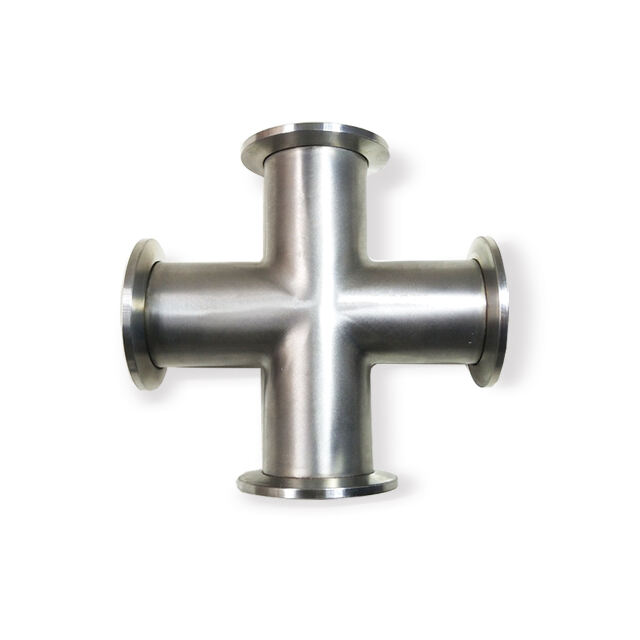

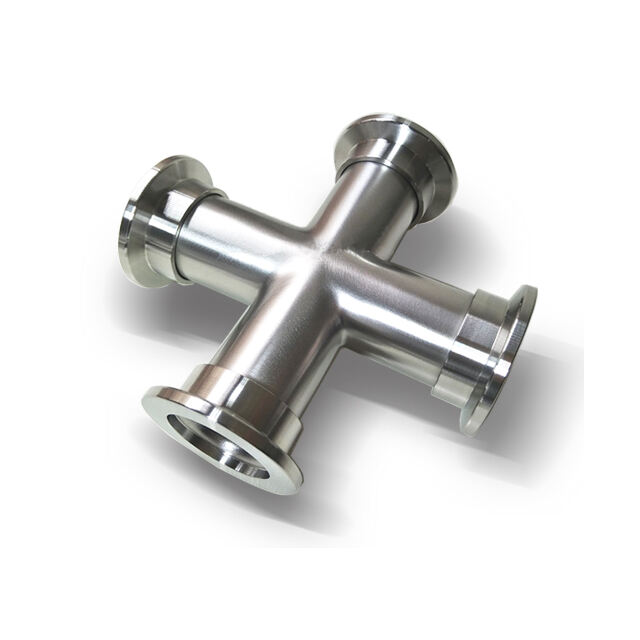

KF 4-Way Crosses
| Model No. | Parts No. | Dimensions | ||||
| A | B | C | D | Available Area | ||
| KF16XA | 310121100 | 38.30 | 19.05 | 30.00 | 76.60 | U.S.A |
| KF25XA | 310121101 | 51.40 | 25.40 | 40.00 | 102.80 | U.S.A |
| KF40XA | 310121102 | 61.00 | 38.10 | 55.00 | 122.00 | U.S.A |
| KF50XA | 310121103 | 80.00 | 50.80 | 75.00 | 160.00 | U.S.A |
| Special Sizes Available Upon Request | ||||||
| KF16XE | 310121104 | 40.00 | 19.05 | 30.00 | 80.00 | Europe |
| KF25XE | 310121105 | 50.00 | 25.40 | 40.00 | 100.00 | Europe |
| KF40XE | 310121106 | 65.00 | 38.10 | 55.00 | 130.00 | Europe |
| KF50XE | 310121107 | 70.00 | 50.80 | 75.00 | 140.00 | Europe |
