KF Radius 90° Elbows
KF Radius 90° Elbows
KF Radius 90° Elbows
KF Radius 90° Elbows
KF Radius 90° Elbows
KF Radius 90° Elbows

KF Radius 90° Elbows

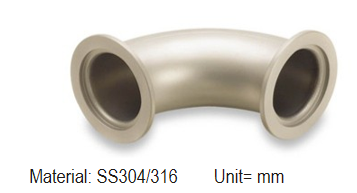

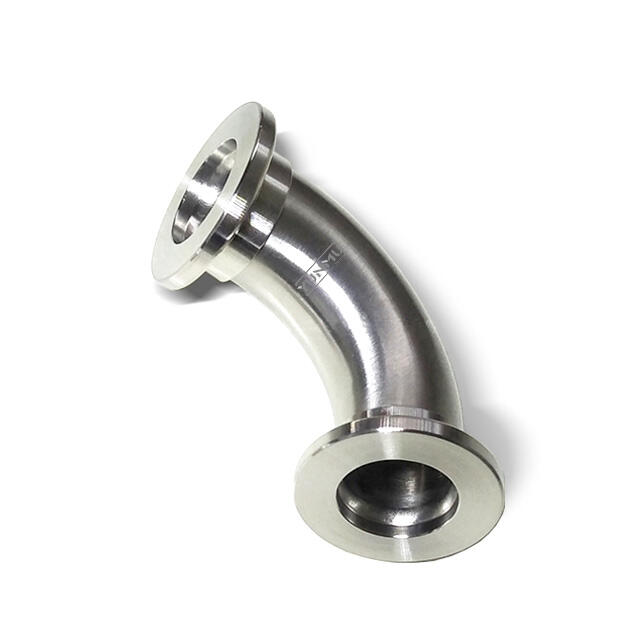

KF (QF) High Vacuum (HV) Clamp Style 90° Radius Elbows.

Inquiry
  • Overview
  • Related Products
  • KF Elbows 90°

kf radius 90 elbows-1kf radius 90 elbows-2

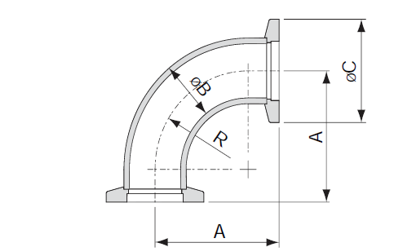

Model No. Dimensions Parts No.
A B C R Available Area
KF16EL90A 38.3 19.05 30 28.6 U.S.A 310121200
KF25EL90A 56.2 25.4 40 38.1 U.S.A 310121201
KF40EL90A 78.4 38.1 55 57.2 U.S.A 310121202
KF50EL90A 107 50.8 75 76.2 U.S.A 310121203
Special Sizes Available Upon Request
KF16EL90E 40 19.05 30 28.6 Europe 310121204
KF25EL90E 50.8 25.4 40 38.1 Europe 310121205
KF40EL90E 65 38.1 55 57.2 Europe 310121206
KF50EL90E 80 50.8 75 76.2 Europe 310121207
