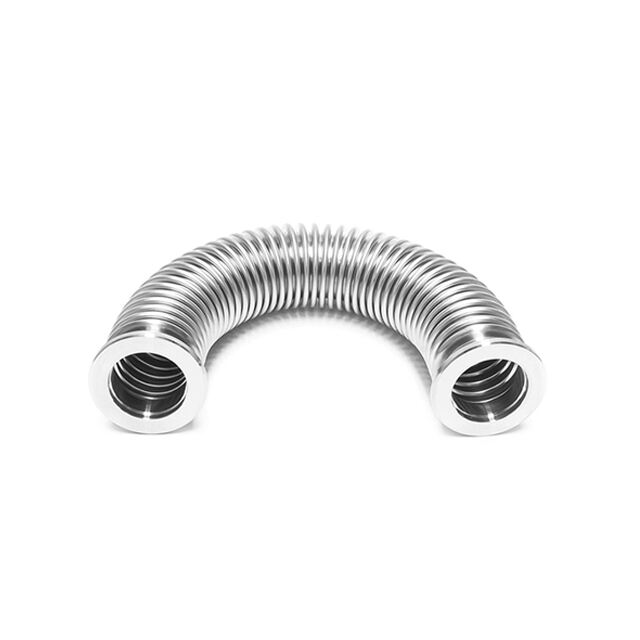

KF ISO-K Compressible Bellows Connections

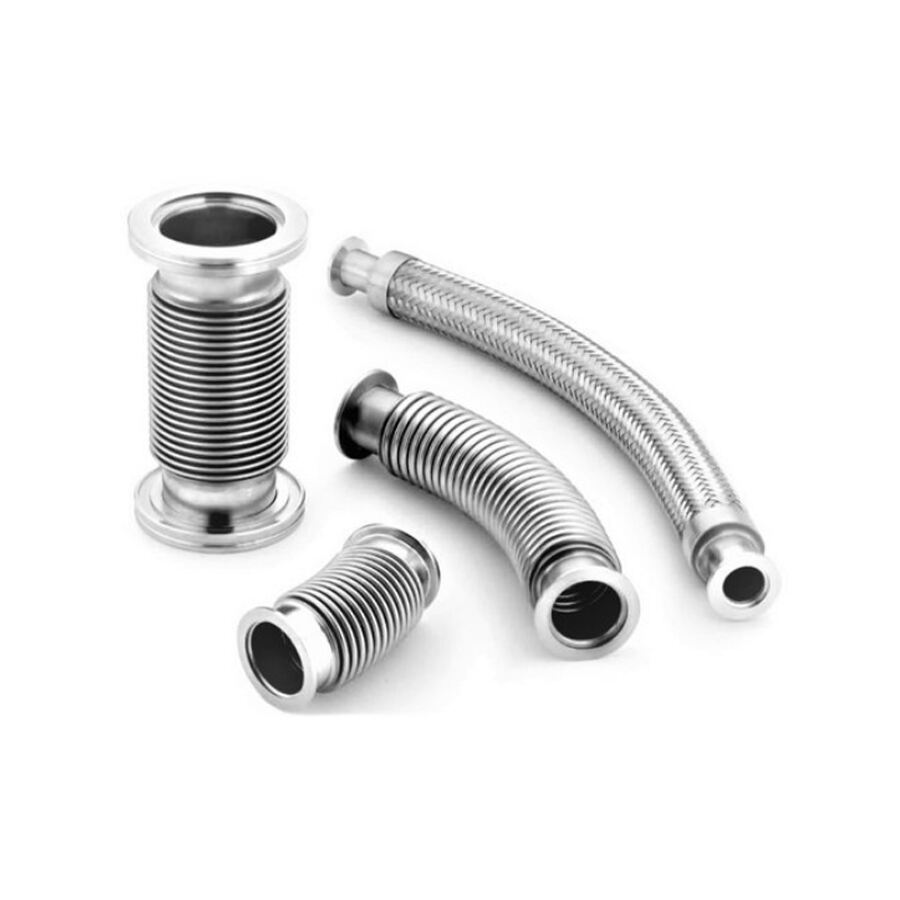

A variety of hydraulically (hydro) formed and edge-welded bellows for use with CF, KF, ISO, and ASA flanged systems.
- Overview
- Related Products
- KF Compressible Bellow Connections
- For more specifications, please contact our staff or send us an email.

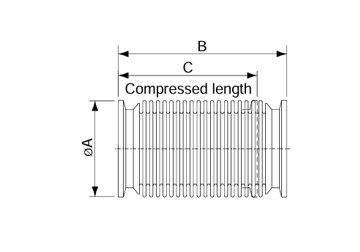

| Model No. | Parts No. | Dimensions | ||
| A | B | C | ||
| KF10FXC100 | 31015200 | 30 | 100 | 80 |
| KF16FXC100 | 31015201 | 30 | 100 | 80 |
| KF25FXC100 | 31015202 | 40 | 100 | 80 |
| KF40FXC100 | 31015203 | 55 | 100 | 80 |
| KF50FXC100 | 31015204 | 75 | 100 | 80 |
