CF Bored Flange

Double-faced CF flanges feature the same sized knife-edge sealing surface on both sides.

  • Overview
  • Related Products

CF Bored Flange

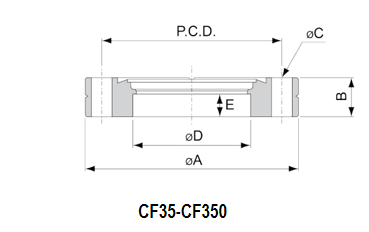

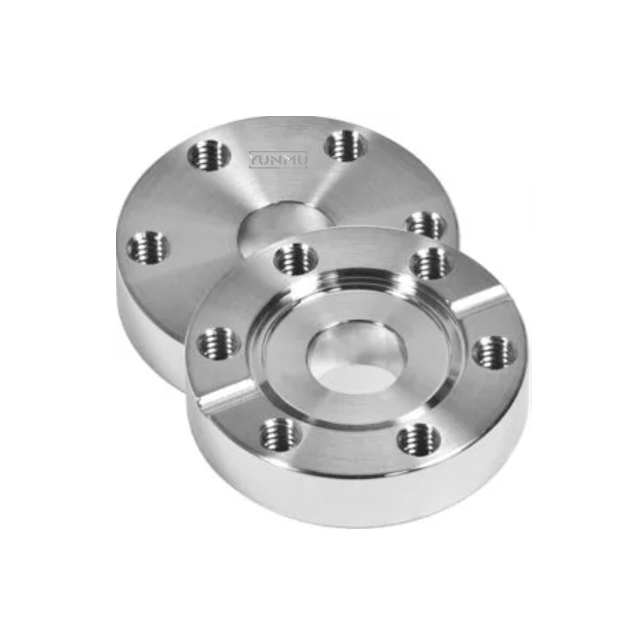

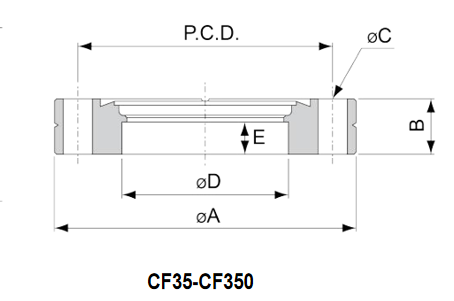

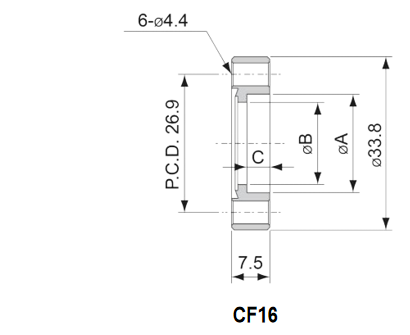

cf bored flange -1cf bored flange -2cf bored flange -3

Material: SS304/316 Unit= mm
Model No. Parts No Dimensions
A B C D P. C. D
CF16B7 31021100 6.5 5.5 - - 26.9
CF16B12 31021101 12.9 10.4 - - 26.9
CF16B19 31021102 19.15 16 - - 26.9
CF35B25 31021103 69.5 12.7 6.7*6 25.6 58.7
CF35B38 31021104 69.5 12.7 6.7*6 38.3 58.7
CF35B42 31021105 69.5 12.7 6.7*6 42.9 58.7
CF63B51 31021107 113.6 18 8.4*8 51.1 92.1
CF63B63 31021108 113.6 18 8.4*8 63.7 92.1
CF100B102 31021110 151.6 20 8.4*16 101.8 130.3
CF150B153 31021111 202.5 22 8.4*20 153.1 181
CF200B204 31021112 253.2 24.7 8.4*24 203.7 231.8
CF250B255 31021113 304 28.5 8.4*32 255 284
CF275B255 31021114 336.5 28.5 10.3*30 255 306.5
CF300B305 31021115 355.6 28.5 10.3*30 305.4 325.7
CF350B356 31021116 419.1 28.5 10.3*36 356.1 388.9

CF Bored Flange Notatable –Tapped Bolt

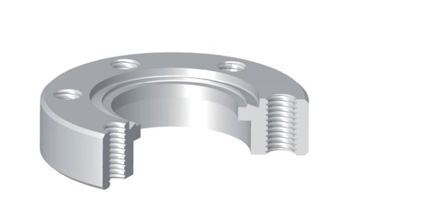

cf bored flange -4cf bored flange -5cf bored flange -6

Material: SS304/316 Unit= mm
Model No. Parts No Dimensions
A B C*NO D P. C. D
CF16B7TAP 31021120 6.5 5.5 M4*6 - 26.9
CF16B12TAP 31021121 12.9 10.4 M4*6 - 26.9
CF16B19TAP 31021122 19.15 16 M4*6 - 26.9
CF35B25TAP 31021123 69.5 12.7 M6*6 25.6 58.7
CF35B38TAP 31021124 69.5 12.7 M6*6 38.3 58.7
CF35B42TAP 31021125 69.5 12.7 M6*6 42.9 58.7
CF63B51TAP 31021126 113.6 18 M8*8 51.1 92.1
CF63B63TAP 31021127 113.6 18 M8*8 63.7 92.1
CF100B102TAP 31021128 151.6 20 M8*16 101.8 130.3
CF150B153TAP 31021129 202.5 22 M8*20 153.1 181
CF200B204TAP 31021130 253.2 24.7 M8*24 203.7 231.8
CF250B255TAP 31021131 304 28.5 M8*32 255 284
CF275B255TAP 31021132 336.5 28.5 M10*30 255 306.5
CF300B305TAP 31021133 355.6 28.5 M10*30 305.4 325.7
CF350B356TAP 31021134 419.1 28.5 M10*36 356.1 388.9
