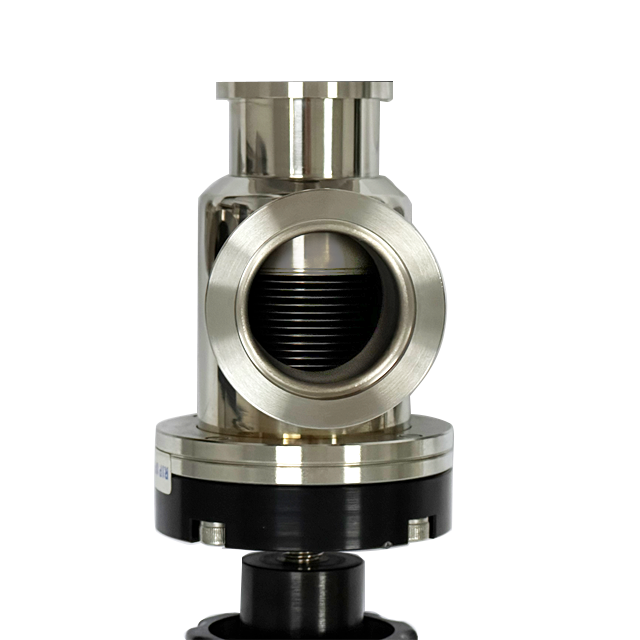

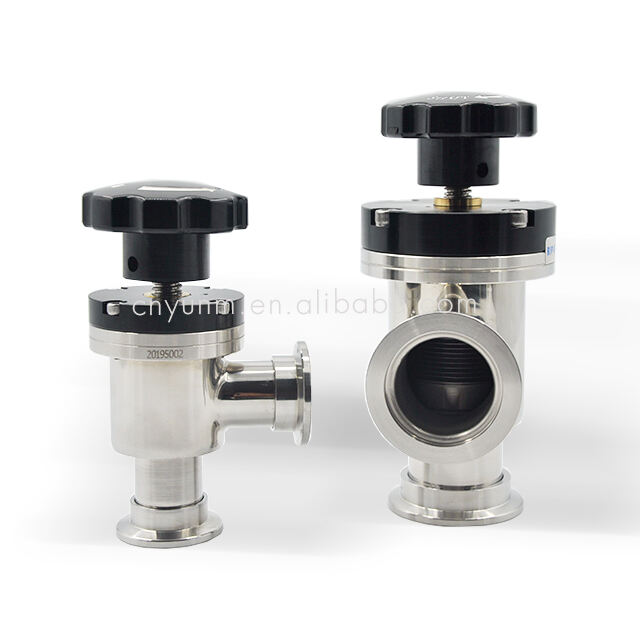

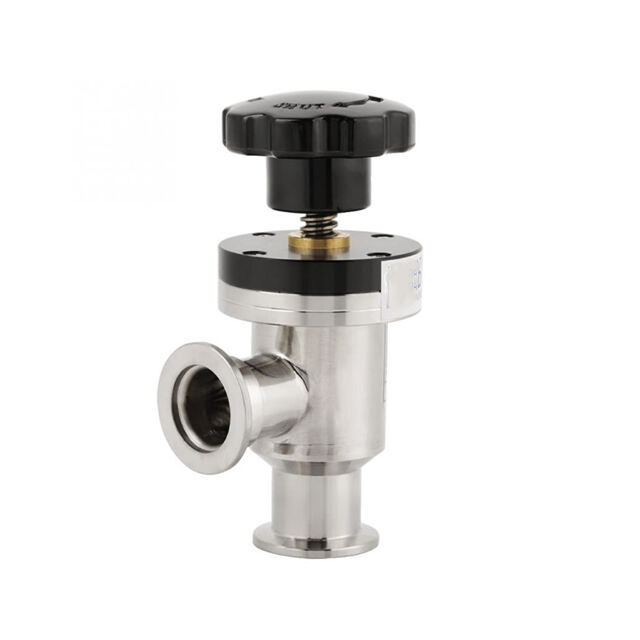

KF Stainless Steel Bellows Sealed Angle Valves (Manual)

Available in almost all flange types, bellows sealed angle valves offer protection to the actuator from process gases in the foreline where typically used.

  • Overview
  • Related Products

KF Flange - Manually Operated With Bellows

KF Stainless Steel Bellows Sealed Angle Valves (Manual) manufacture

Features:

  • Stainless steel body surface treatment : below 4”puff polishing
  • 3/4~2 inch(19.05~50.8mm) port ODs.
  • Viton Seal Bonnet : 10-9 mbar vacuum rating KF flange
  • Bakeable to 150℃
  • Welded bellows (316/AM350 optional)

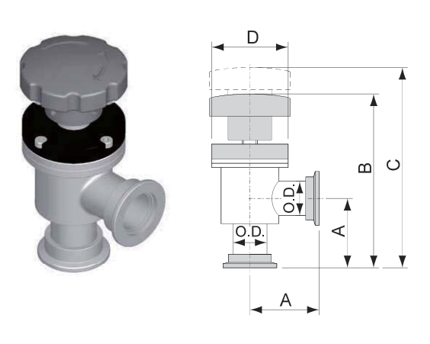

Model No. O.D A B C D Parts No.
AVB-KF16-M 19.05 54.6 136.5 156 56.8 31016000
AVB-KF25-M 25.4 51.6 130.2 149.7 56.8 31016001
AVB-KF40-M 38.1 61 163.5 196 75.8 31016002
AVB-KF50-M 50.8 86.3 207 251.7 88.4 31016003


Model No. O.D A B C D Parts No.
AVB-KF16-M-E 19.05 40 121.9 141.5 56.8 31016004
AVB-KF25-M-E 25.4 50 128.6 148.1 56.8 31016005
AVB-KF40-M-E 38.1 65 167.5 200 75.8 31016006
AVB-KF50-M-E 50.8 70 190.5 235.5 88.4 31016007


Model No. O.D A B C D Parts No.
AVB-CR100-M 101.6 118 344.8 408.8 151.6 31026003
AVB-CR150-M 152.4 165.1 443.6 518.6 240 31026004
AVB-CR200-M 203.2 215.6 549.7 679.7 250 31026005
AVB-CR250-M 254 266.7 678.8 808.8 325 31026006

ISO Flange - Manually Operated With Bellows


Features:

  • Stainless steel body surface treatment : below 4”puff polishing
  • 2.5~3 inch(63.5~76.2mm) port ODs.
  • Viton Seal Bonnet : 10-9 mbar vacuum rating KF flange
  • Bakeable to 150℃
  • Welded bellows (316/AM350 optional)

Model No. O.D A B C D Parts No.
AVB-ISO63-M 63.5 82.8 219.3 261.7 99.5 31036000
AVB-ISO80-M 76.2 89.1 227.4 275 114 31036001


Model No. O.D A B C D Parts No.
AVB-ISO63-M-E 63.5 88 224.5 266.9 99.5 31036020
AVB-ISO80-M-E 76.2 98 236.3 283.9 114 31036021


Model No. O.D A B C D Parts No.
AVB-ISO100-M 101.6 113.5 340.3 404.3 151.6 31036002
AVB-ISO160-M 152.4 159 437.5 512.5 240 31036003
AVB-ISO200-M 203.2 209.5 543.6 673.6 250 31036004
AVB-ISO250-M 254 260.6 672.7 802.7 325 31036005

KF Valve


Features:

  • Stainless steel body surface treatment
  • Applicable range (pa): 105~1.3*10-6 Pa. M3/S
  • Valve leakage rate (Pa·L/S) ≤1.3*10-6
  • Temperature to -30℃~150℃
  • Hydraulic Bellow Welded bellows (316/AM350 optional)
  • Special can contact customer service
  • Air pressure(Mpa): 0.4~0.6

Model No. O.D A B C D E F Parts No.
IVB-KF16-M 19.05 54.1 28 48 129.4 148.9 56.8 31016500
IVB-KF25-M 25.4 52.8 35 58 135.8 155.3 56.8 31016501
IVB-KF40-M 38.1 62.7 47.8 79.3 181.8 214.3 75.8 31016502
IVB-KF50-M 50.8 90.6 66.5 101.6 224.8 269.5 88.4 31016503

CF Valve


Features:

  • Stainless steel body surface treatment
  • Applicable range (pa): 105~1.3*10-6 Pa. M3/S
  • Valve leakage rate (Pa·L/S) ≤1.3*10-7
  • Bakeable to 200℃
  • Hydraulic Bellow Welded bellows (316/AM350 optional)
  • Air pressure(Mpa): 0.4~0.6

Model No. O.D A B C D E F Parts No.
IVB-CR16-M 19.05 63.5 28 48 129.6 149.1 56.8 31026500
IVB-CR35-M 25.4 62.5 48 79 181.8 214.3 75.8 31026501
