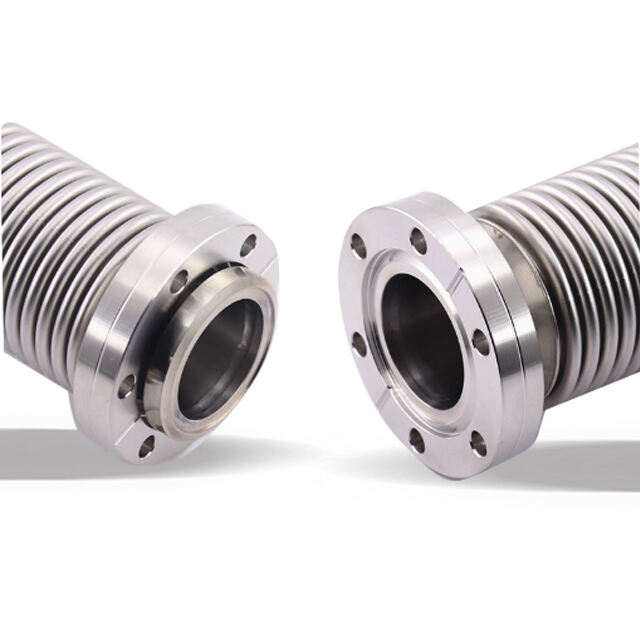

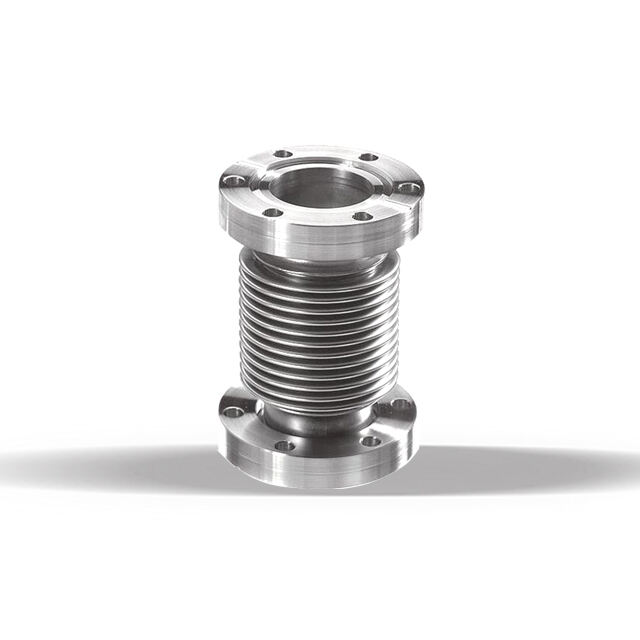

CF Compressible Bellow Connections
A variety of hydraulically (hydro) formed and edge-welded bellows for use with CF, KF , ISO, and ASA flanged systems.
- Overview
- Related Products
- CF Compressible Bellow Connections
- For other specifications, please contact our staff or send us an email.

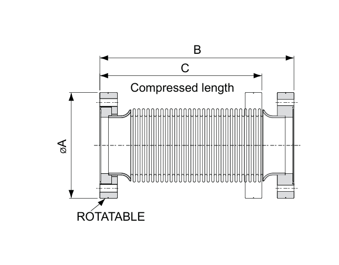

Model No. | Dimensions | Parts No. | ||
A | B | C | ||
CF16FXC150R | 33.5 | 150 | 130 | 31025200 |
CF35FXC180R | 69.5 | 180 | 160 | 31025201 |
CF63FXC210R | 113.6 | 210 | 190 | 31025202 |
CF100FXC270R | 151.6 | 270 | 250 | 31025203 |
