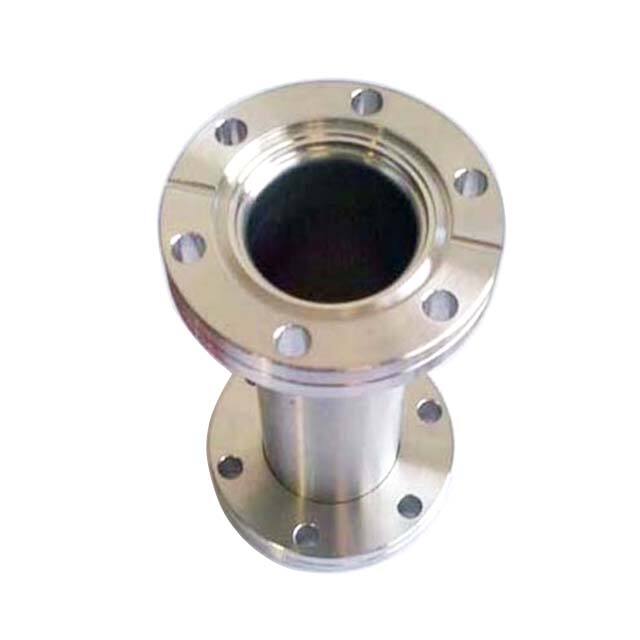

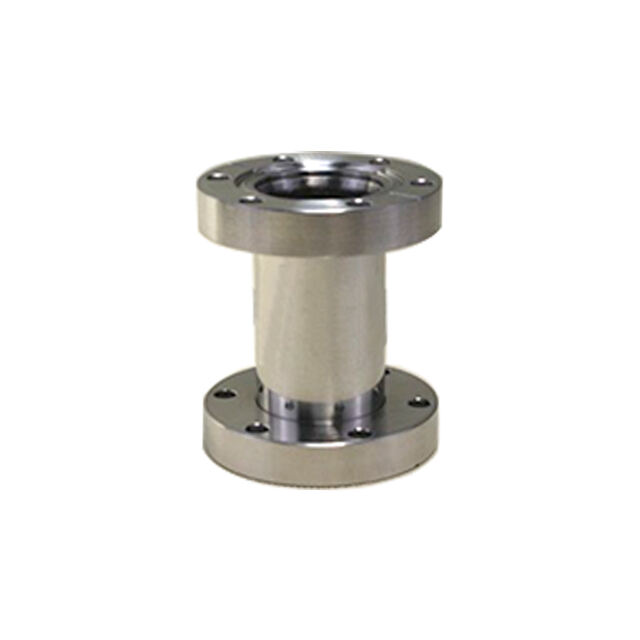

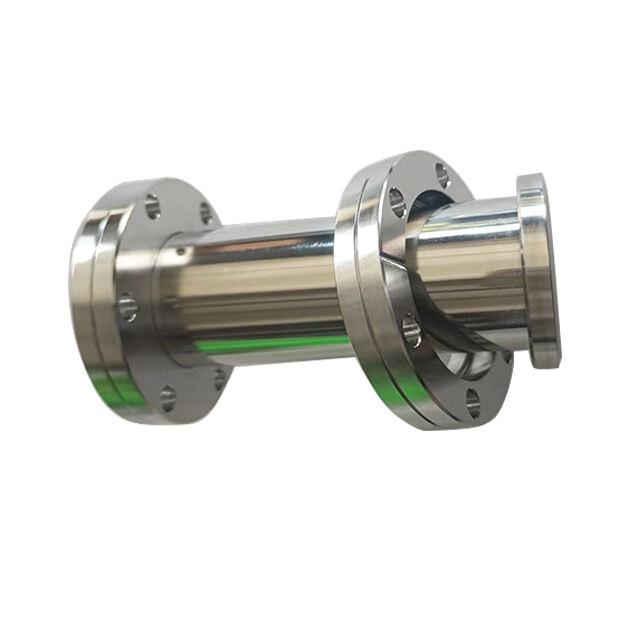

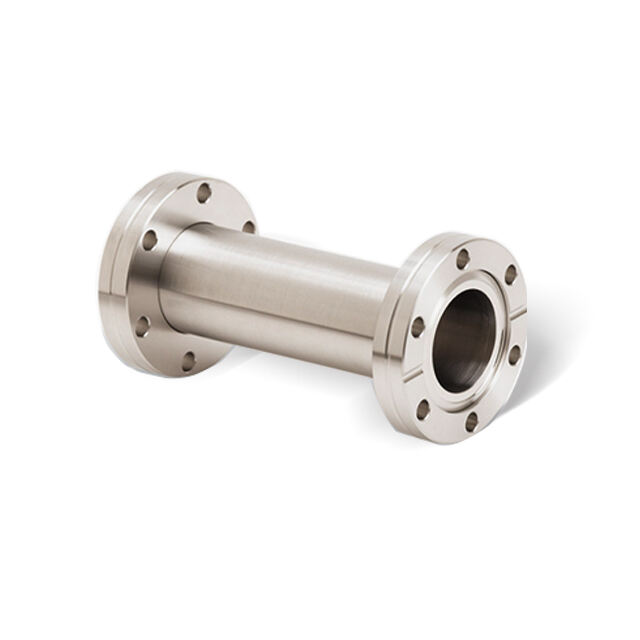

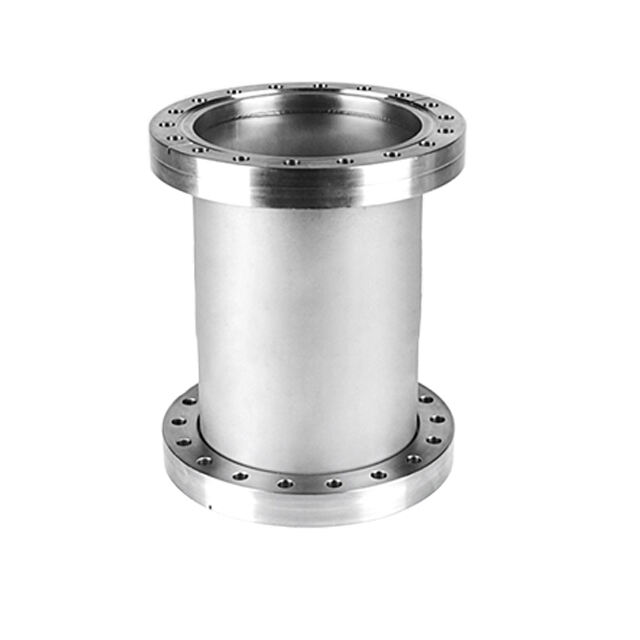

CF Full Nipples
CF full nipples feature the same size flange on either end, with one fixed and one rotatable flange, typically used to connect components together.
- Overview
- Related Products
We design and manufacture fully customizable vacuum chambers to match your exact process requirements, with flexible configurations covering a wide range of industrial and lab scenarios:
Material: 304 stainless steel, 316L stainless steel, or customer-specified materials
Operating temperature range: -190°C to +1500°C (water cooling configuration available for high-temperature working conditions)
Sealing method: Fluororubber "O"-ring for general vacuum use, or metal oxygen-free copper gasket for ultra-high vacuum and extreme temperature environments
Quality is verified at every step before delivery, with mandatory factory inspections on every unit:
🔹Vacuum leak rate test
🔹Customizable surface treatments:
Wire drawing and polishing, sandblasting and electrolytic treatment, acid pickling, electrolytic polishing, mirror polishing, and more to fit your application standards
Whether you need a chamber for PVD coating, semiconductor processing, thermal treatment, food freeze-drying, or lab research, we can tailor the design to your footprint, interface, and performance needs.
CF Full Nipples


| Model No. | Parts No. | Dimensions | ||
| A | B | C | ||
| CF16N76 | 31022000 | 33.8 | 76 | 19.05 |
| CF35N126 | 31022001 | 69.5 | 126 | 38.1 |
| CF63N210 | 31022002 | 113.6 | 210 | 63.5 |
| CF100N270 | 31022003 | 151.6 | 270 | 101.6 |
| CF150N334 | 31022004 | 202.5 | 334 | 152.4 |
| CF200N334 | 31022005 | 253.2 | 334 | 203.2 |
