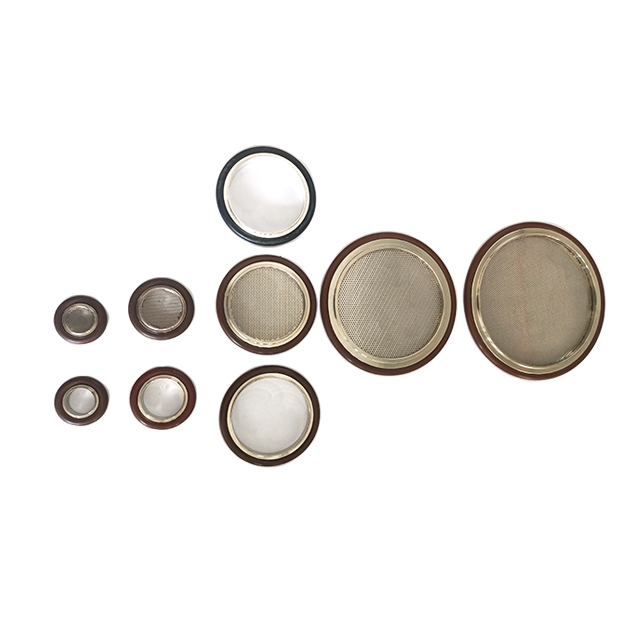

KF Centering Ring
| Model No. | Parts No. | Dimensions | |||
| A | B | C | D | ||
| KF10CRS | 31013000 | 10.00 | 12.00 | 8.00 | 3.90 |
| KF16CRS | 31013001 | 16.00 | 17.00 | 8.00 | 3.90 |
| KF25CRS | 31013002 | 25.00 | 26.00 | 8.00 | 3.90 |
| KF40CRS | 31013003 | 40.00 | 41.00 | 8.00 | 3.90 |
| KF50CRS | 31013004 | 50.00 | 52.00 | 8.00 | 3.90 |
KF Centering With O-Ring
| Model No. | Parts No. | Dimensions | ||||
| A | B | C | D | Material O’Ring | ||
| KF10CRVS | 31013015 | 10.00 | 12.00 | 8.00 | 3.90 | Viton |
| KF16CRVS | 31013016 | 16.00 | 17.00 | 8.00 | 3.90 | Viton |
| KF25CRVS | 31013017 | 25.00 | 26.00 | 8.00 | 3.90 | Viton |
| KF40CRVS | 31013018 | 40.00 | 41.00 | 8.00 | 3.90 | Viton |
| KF50CRVS | 31013019 | 50.00 | 52.00 | 8.00 | 3.90 | Viton |
KF Centering With Outer Ring & O-Ring
| Model No. | Parts No. | Dimensions | |||
| A | B | C | Material O’Ring | ||
| KF16OCRVS | 31013033 | 16.00 | 32.50 | 8.00 | Viton |
| KF25OCRVS | 31013034 | 25.00 | 42.50 | 8.00 | Viton |
| KF40OCRVS | 31013035 | 40.00 | 57.50 | 8.00 | Viton |
| KF50OCRVS | 31013036 | 50.00 | 77.50 | 8.00 | Viton |
KF Meshed Centering Ring
| Model No. | Parts No. | Mesh/In2 | Dimensions | |||
| A | B | C | Material O’Ring | |||
| KF16M3CRVS | 31013046 | 900 | 12.00 | 17.00 | 3.9 | Viton |
| KF25M3CRVS | 31013047 | 900 | 20.50 | 26.00 | 3.9 | Viton |
| KF40M3CRVS | 31013048 | 900 | 35.80 | 41.00 | 3.9 | Viton |
| KF50M3CRVS | 31013049 | 900 | 46.30 | 52.00 | 3.9 | Viton |
| KF63M3CRVS | 31013050 | 900 | 60.50 | 69.60 | 3.9 | Viton |
| KF80M3CRVS | 31013051 | 900 | 73.60 | 82.60 | 3.9 | Viton |
| KF100M3CRVS | 31013052 | 900 | 91.80 | 101.60 | 3.9 | Viton |
