CF 4-way Cross

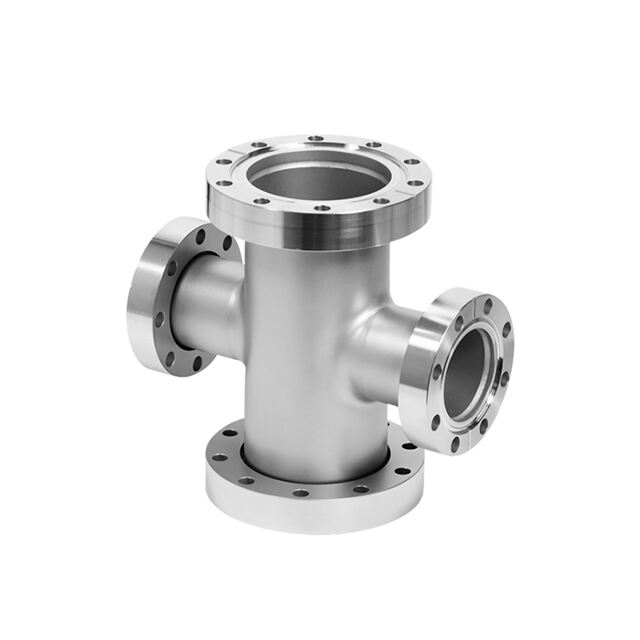

4-way standard crosses feature one fixed and one rotatable CF flange of the same size on each axis.
- Overview
- Related Products
We design and manufacture fully customizable vacuum chambers to match your exact process requirements, with flexible configurations covering a wide range of industrial and lab scenarios:
Material: 304 stainless steel, 316L stainless steel, or customer-specified materials
Operating temperature range: -190°C to +1500°C (water cooling configuration available for high-temperature working conditions)
Sealing method: Fluororubber "O"-ring for general vacuum use, or metal oxygen-free copper gasket for ultra-high vacuum and extreme temperature environments
Quality is verified at every step before delivery, with mandatory factory inspections on every unit:
🔹Vacuum leak rate test
🔹Customizable surface treatments:
Wire drawing and polishing, sandblasting and electrolytic treatment, acid pickling, electrolytic polishing, mirror polishing, and more to fit your application standards
Whether you need a chamber for PVD coating, semiconductor processing, thermal treatment, food freeze-drying, or lab research, we can tailor the design to your footprint, interface, and performance needs.
CF 4 Way Crosses-Fixed
| Model No. | Parts No. | Dimensions | |||
| A | B | C | D | ||
| CF16X | 31022055 | 37.50 | 19.05 | 33.80 | 75.00 |
| CF35X | 31022056 | 62.50 | 38.10 | 69.50 | 125.00 |
| CF63X | 31022057 | 85.70 | 63.50 | 113.60 | 171.40 |
| CF100X | 31022058 | 109.50 | 101.60 | 151.60 | 219.00 |
| CF150X | 31022059 | 139.70 | 152.40 | 202.50 | 279.40 |
CF 4 Way Crosses-Two Flange Rotatable
| Model No. | Parts No. | Dimensions | |||
| A | B | C | D | ||
| CR16X | 31022065 | 47.20 | 19.05 | 33.80 | 94.40 |
| CR35X | 31022066 | 62.50 | 38.10 | 69.50 | 125.00 |
| CR63X | 31022067 | 85.70 | 63.50 | 113.60 | 171.40 |
| CR100X | 31022068 | 109.50 | 101.60 | 151.60 | 219.00 |
| CR150X | 31022069 | 139.70 | 152.40 | 202.50 | 279.40 |
