We design and manufacture fully customizable vacuum chambers to match your exact process requirements, with flexible configurations covering a wide range of industrial and lab scenarios:
Material: 304 stainless steel, 316L stainless steel, or customer-specified materials
Operating temperature range: -190°C to +1500°C (water cooling configuration available for high-temperature working conditions)
Sealing method: Fluororubber "O"-ring for general vacuum use, or metal oxygen-free copper gasket for ultra-high vacuum and extreme temperature environments
Quality is verified at every step before delivery, with mandatory factory inspections on every unit:
🔹Vacuum leak rate test
🔹Customizable surface treatments:
Wire drawing and polishing, sandblasting and electrolytic treatment, acid pickling, electrolytic polishing, mirror polishing, and more to fit your application standards
Whether you need a chamber for PVD coating, semiconductor processing, thermal treatment, food freeze-drying, or lab research, we can tailor the design to your footprint, interface, and performance needs.

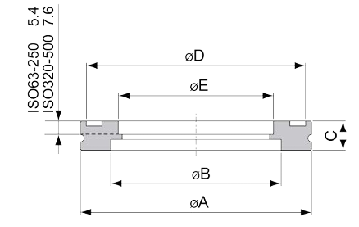

ISO Bored Flanges
| Model No. | Parts No. | Dimensions | ||||
| A | B | C | D | E | ||
| ISO63B63 | 31031011 | 95.00 | 70.00 | 12.00 | 90.00 | 63.70 |
| ISO80B76 | 31031012 | 110.00 | 83.00 | 12.00 | 105.00 | 76.40 |
| ISO100B102 | 31031013 | 130.00 | 102.00 | 12.00 | 125.00 | 101.80 |
| ISO160B153 | 31031014 | 180.00 | 153.00 | 12.00 | 175.00 | 152.90 |
| ISO200B204 | 31031015 | 240.00 | 213.00 | 12.00 | 235.00 | 203.70 |
| ISO250B255 | 31031016 | 290.00 | 261.00 | 12.00 | 285.00 | 254.50 |
| ISO320B305 | 31031017 | 370.00 | 318.00 | 12.00 | 365.00 | 305.30 |
| ISO400B407 | 31031018 | 450.00 | 400.00 | 12.00 | 445.00 | 406.90 |
| ISO500B509 | 31031019 | 550.00 | 501.00 | 12.00 | 545.00 | 508.80 |
